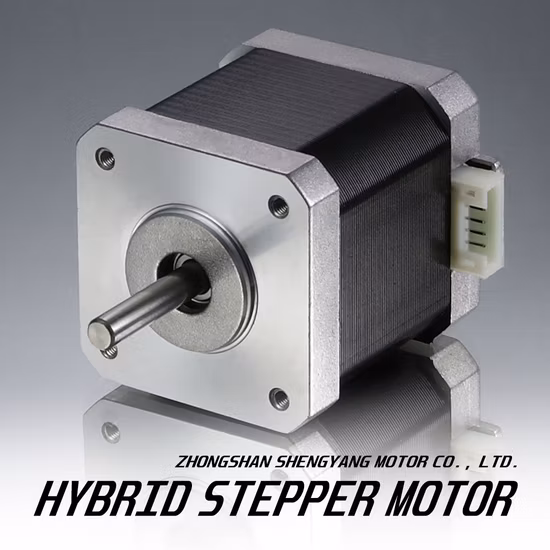

42 mm (NEMA 17) Electrical Stepper Motor for 3D Printer
42 MM (NEMA 17) Electrical Motor for 3D Printer Stepper motors, AC servo motors and brushless dc motors are avaiable to ;
Basic Info.
Model NO. | 42BYGH1101-B-265L, 42BYGH1102-B-20 |
Operate Mode | 2 Phase-8 Parts |
Type | Magnetic-Electric |
Certification | ISO9001, RoHS, CE |
Brand | Shengyang |
Holding Torque | 240mnm (33.98 Oz-in), 280mnm (39.6 Oz-in) |
Motor Length | 34.3 mm (1.35 in) Max |
Payment Term | 30% Deposit, 70% Balance Before Shipment. |
Usage | 3D printer |
Rated Current | 0.4 a DC, 0.84 a DC |
Shaft End Length | 265 mm (10.43 in), 20 mm (0.79 in) |
Connectors | Connectors, Lead Wires |

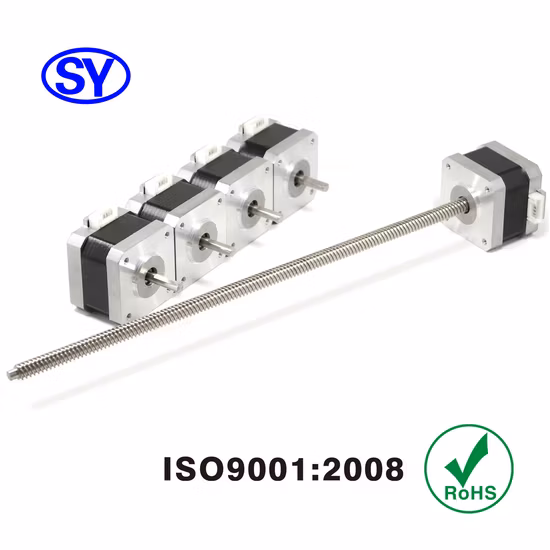

Shaft | Screw Shaft, Round Shaft |
Step Angle | 1.8 Degree |
Motor Series | 42 Bygh |
Transport Package | Green Packaging |
Specification | RoHS, ISO9001: 2015 |
Trademark | SY |
Origin | Zhongshan |
HS Code | 8501109990 |
Production Capacity | 350000 PCS/Month |
Product Description
42 MM (NEMA 17) Electrical Motor for 3D Printer
Stepper motors, AC servo motors and brushless dc motors are avaiable to customized for the world, NEMA 11, 14, 16, 17, 23, 24, 34 stepper motor, 50W, 100W, 200W, 400W, 500W, 750W, 1000W, 1200W AC servo motor, and brushless dc motor are all included.The derived products are widely used in ATM machines, digital scanners, stylus printers, plotters, slot machines, CD-ROM drivers, stage lighting, camera lenses, CNC machines, medical machines, 3D printers for industry and our life.
All the derived products of us can be customized for your requirement.
Features: High torque Low noise Smallsize Product Description 1. Specifications: Motor Model: 42BYGH1101-B-265L, 42BYGH1102-B-20 Step Angle: 1.8° ± 5% full step, no load Holding Torque: 240 mNm (33.98 oz-in), 280mNm (39.6oz-in) Rated Current: 0.4 A DC, 0.84 A DC Motor Length: 34.3 mm (1.35 in) Max Shaft End Length: 265mm (10.43 in), 20mm (0.79 in) Shaft: Screw Shaft, Round Shaft Connectors: Plug-in, Lead Wires Ambient Temperature: -24 ºC - +60 ºC Relative humidity: 90% MAX Resistance Accuracy: ± 10% Insulation Resistance: Larger than 100 mΩ 500 V DC Dielectric Strength: 600 V AC for 1S, leakage current less than 1mA 2.Note: Performance and parameters can be customized, just simply send your motor diagram or samples to us, the best price will be sent to you soon for your referencePricing is decided by the motor's performace and parameters, most importantly decided by your requirment, contact us and get the latest the price list. 3.Payment term: T/T in advance, 30% deposit, 70% balance before shipment.
Series & Length | Model Number | Holding Torque | Rated Current | Resistance per Phase | Inductance per Phase |
mNm oz-in | A | ohm | Mh | ||
42BYGH0 26mm (1.02 in.) | 42BYGH001 | 120 17 | 0.3 | 42 | 48 |
42BYGH007 | 160 22.66 | 0.4 | 10.4 | 14 | |
42BYGH1 33mm (1.30 in.) | 42BYGH104 | 275 38.94 | 0.4 | 40 | 35 |
42BYGH107 | 250 35.40 | 0.4 | 22 | 30 | |
42BYGH2 34mm (1.34 in.) | 42BYGH202 | 220 31.15 | 0.5 | 30 | 37 |
42BYGH3 40mm (1.57in) | 42BYGH312 | 530 75.05 | 0.6 | 26 | 48 |
42BYGH4 40mm (1.57 in.) | 42BYGH412 | 420 59.47 | 1 | 6.7 | 9.8 |
42BYGH413 | 300 42.48 | 1 | 3.5 | 5 | |
42BYGH11 34mm (1.34 in.) | 42BYGH1101 | 240 33.98 | 0.4 | 30 | 45 |
42BYGH1102 | 280 39.65 | 0.84 | 5.75 | 9.3 |
